IC62LV256L 32K x 8 Low Power SRAM

The ICSI IC62LV256L is a very high-speed, low power, 32,768-word by 8-bit static RAM. It is fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 15 ns maximum. When CE is HIGH (deselec.

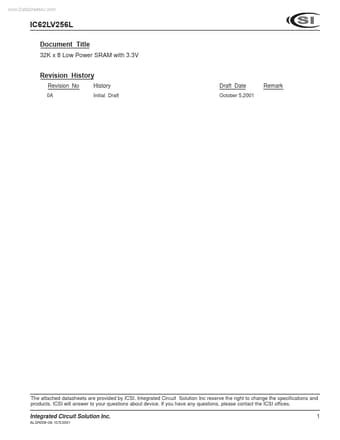

www.DataSheet4U.com IC62LV256L Document Title 32K x 8 Low Power SRAM with 3.3V Revision History Revision No 0A History Initial Draft Draft Date October 5,2001 Remark The attached datasheets are provided by ICSI. Integrated Circuit Solution Inc reserve the right to change the specifications and products. ICSI will answer to your questions about device. If you have any questions, please contact the ICSI offices. Integrated Circuit Solution Inc. ALSR008-0A 10/5/2001 1 IC62LV256L 32K x 8 L.

IC62LV256L Features

* High-speed access time: 15, 20, 25 ns

* Automatic power-down when chip is deselected

* CMOS low power operation

* 255 mW (max.) operating

* 0.18 mW (max.) CMOS standby

* TTL compatible interface levels

* Single 3.3V power supply

* Ful

IC62LV256L Datasheet (135.67 KB)

IC62LV256L Datasheet Preview — Preview of IC62LV256L PDF

Datasheet Details

Part number:

IC62LV256L

Manufacturer:

ICSI

File Size:

135.67 KB

Description:

32k x 8 low power sram.
