ICS557-06 - ONE TO FOUR HCSL CLOCK BUFFER

Product Overview

ICST

📥 Download Datasheet

ICS557-06 ONE TO FOUR HCSL CLOCK BUFFER by ICST - Datasheet Preview — Datasheet preview – ICS557-06

Datasheet Details

Part number	ICS557-06
Manufacturer	ICST
File Size	231.74 KB
Description	ONE TO FOUR HCSL CLOCK BUFFER
Datasheet	ICS557-06 Datasheet
Additional preview pages of the ICS557-06 datasheet.

Product details

Description

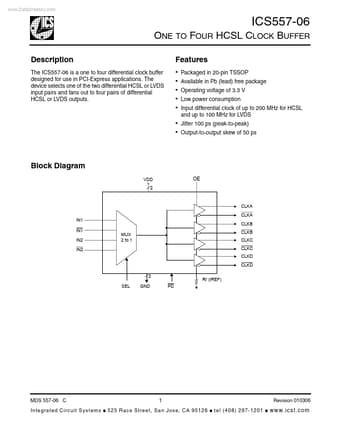

The ICS557-06 is a one to four differential clock buffer designed for use in PCI-Express applications.

Features

Packaged in 20-pin TSSOP Available in Pb (lead) free package Operating voltage of 3.3 V Low power consumption Input differential clock of up to 200 MHz for HCSL and up to 100 MHz for LVDS.
Jitter 100 ps (peak-to-peak).
Output-to-output skew of 50 ps Block Diagram VDD 2 OE CLKA CLKA IN1 IN1 IN2 IN2 MUX 2 to 1 CLKB CLKB CLKC CLKC CLKD CLKD 2 SEL GND PD Rr (IREF) MDS 557-06 C I n t e gra te d C i r c u i t S y s t e m s.
