ICS557-01 Datasheet, Source, Renesas

ICS557-01 Features

  • Source
  • Supports PCI-ExpressTM HCSL Outputs 0.7 V current mode differential pair
  • Supports LVDS Output Levels
  • Packaged in 8-pin SOIC
  • RoHS 5 (green) or RoH

PDF File Details

Part number:

ICS557-01

Manufacturer:

Renesas ↗

File Size:

277.58kb

Download:

📄 Datasheet

Description:

Pci-express gen1 clock source. The ICS557-01 is a clock chip designed for use in PCI-Express Cards as a clock source. It provides a pair of differential outputs at

Datasheet Preview: ICS557-01 📥 Download PDF (277.58kb)

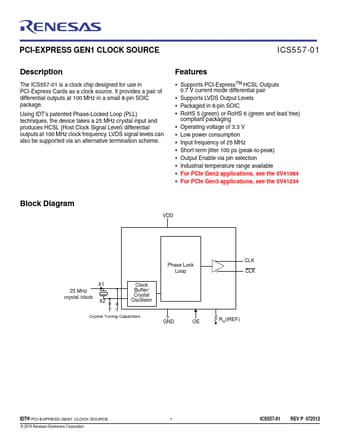

Page 2 of ICS557-01 Page 3 of ICS557-01

ICS557-01 Application

  • Applications see the 5V41064
  • For PCIe Gen3 applications, see the 5V41234 Block Diagram VDD X1 25 MHz crystal /clock X2 Clock Buffer/ C
