ICS557-06 Datasheet, Mux, Renesas

ICS557-06 Features

• Mux
• Packaged in 20-pin TSSOP
• Pb (lead) free packaging
• Operating voltage of 3.3 V
• Low power consumption
• Input differential clock of up to 20

PDF File Details

Part number:

ICS557-06

Manufacturer:

Renesas ↗

File Size:

287.74kb

Download:

📄 Datasheet

Description:

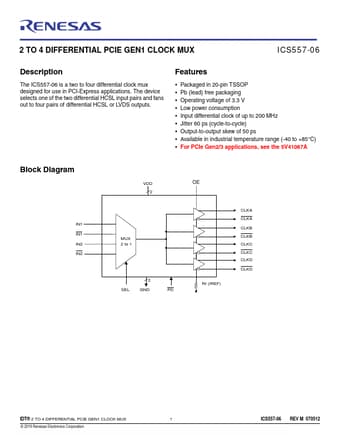

2 to 4 differential pcie gen1 clock mux. The ICS557-06 is a two to four differential clock mux designed for use in PCI-Express applications. The device selects one of the two

ICS557-06 Application

• Applications The device selects one of the two differential HCSL input pairs and fans out to four pairs of differential HCSL or LVDS outputs. Feat

TAGS

ICS557-06

Renesas
