ICS552-03

LOW SKEW 1 TO 8 CLOCK BUFFER

ICS552-03 Features

* Low skew outputs (50 ps maximum) Packaged in 16 pin TSSOP Low power CMOS technology Operating Voltages of 2.5 V to 5 V Output Enable pin tri-states outputs Low skew between 1X and 1/2X outputs (100 ps

ICS552-03 General Description

The ICS552-03 is a low skew, single input to eight output clock buffer. Four of the outputs are exact copies of the input, while the other four are divide by 2 copies of the input. It is part of ICS’ Clock BlocksTM family. See the ICS553 for a 1 to 4 low skew buffer, or the ICS552-02 for a 1 to 8 lo.

ICS552-03 Datasheet (120.80 KB)

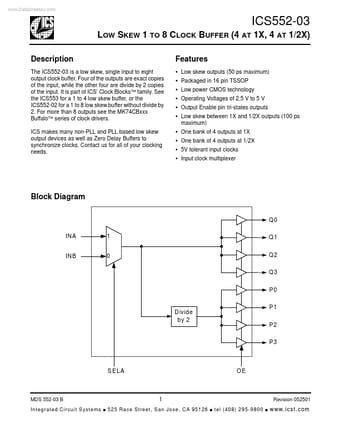

Preview of ICS552-03 PDF

Datasheet Details

Part number:

ICS552-03

Manufacturer:

ICST

File Size:

120.80 KB

Description:

Low skew 1 to 8 clock buffer.
