ICS551

1 TO 4 CLOCK BUFFER

ICS551 Features

* Low skew (250 ps) outputs

* Pb-free packaging

* Low cost clock buffer

* Packaged in 8-pin SOIC

* Input/Output clock frequency up to 160 MHz

* Non-inverting output clock

* Ideal for networking clocks

* Operating Voltages of 3.3 and 5.0

ICS551 General Description

The ICS551 is a low cost, high-speed single input to four output clock buffer. Part of IDT’s ClockBlocksTM family, this is our lowest cost, small clock buffer. See the ICS552-02B for monolithic dual version of the ICS551 in a 20 pin QSOP. IDT makes many non-PLL and PLL based low skew output devices .

ICS551 Datasheet (310.66 KB)

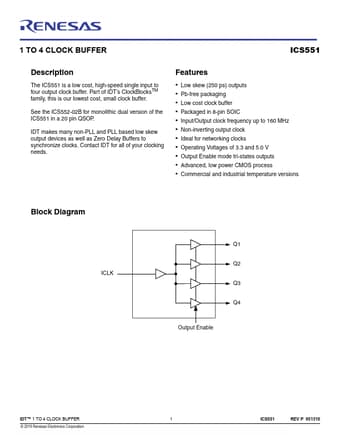

Preview of ICS551 PDF

Datasheet Details

Part number:

ICS551

Manufacturer:

Renesas ↗

File Size:

310.66 KB

Description:

1 to 4 clock buffer.
