ICS552-01A

Crystal Oscillator & Multiplier

ICS552-01A Features

* Packaged in 20 pin SSOP (QSOP)

* Input frequency of 10.0 - 27.0 MHz

* Contains on-chip multiplier with selections of x1, x1.33, x2, x2.66, x3, x3.33, x4, x4.66, x5, and x6

* Provides 8 low skew outputs (

ICS552-01A General Description

The ICS552-01A produces 8 low skew copies of a multiple of the input when a clock or fundamental, parallel-mode crystal is connected to it. Unlike other clock drivers, it does not require a separate oscillator for the input. Using a phaselocked loop (PLL) to multiply the input frequency, it is ideal.

ICS552-01A Datasheet (79.50 KB)

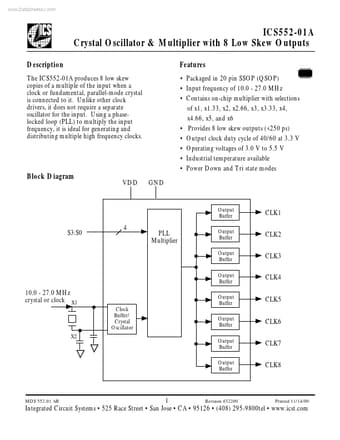

Preview of ICS552-01A PDF

Datasheet Details

Part number:

ICS552-01A

Manufacturer:

ICST

File Size:

79.50 KB

Description:

Crystal oscillator & multiplier.
