89HPES32H8

32-Lane 8-Port PCI Express System Interconnect Switch

89HPES32H8 Features

* High Performance PCI Express Switch

* Eight maximum switch ports

* Four main ports each of which consists of eight SerDes

* Each x8 main port can further bifurcate to 2 x4-ports

* Thirty-two 2.5 Gbps embedded SerDes

* Supports pre-emphasis and receive e

89HPES32H8 General Description

Utilizing standard PCI Express interconnect, the PES32H8 provides the most efficient system interconnect switching solution for applications requiring maximum throughput, low latency, and simple board layout with a minimum number of board layers. It provides 128 Gbps of aggregated, full-duplex switc.

89HPES32H8 Datasheet (908.45 KB)

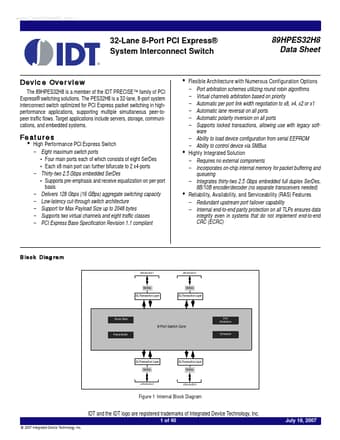

Preview of 89HPES32H8 PDF

Datasheet Details

Part number:

89HPES32H8

Manufacturer:

IDT

File Size:

908.45 KB

Description:

32-lane 8-port pci express system interconnect switch.
www.DataSheet4U.com 32-Lane 8-Port PCI Express® System Interconnect Switch ® 89HPES32H8 Data Sheet Device Overview The 89HPES32H8 is a member of th.
