89HPES32H8G2 Datasheet - Renesas

89HPES32H8G2 System Interconnect Switch

32-Lane 8-Port PCIe® Gen2 System Interconnect Switch ® 89HPES32H8G2 Data Sheet Device Overview The 89HPES32H8G2 is a member of the IDT PRECISE™ family of PCI Express® switching solutions. The PES32H8G2 is a 32-lane, 8-port system interconnect switch optimized for PCI Express Gen2 packet switching in high-performance applications, supporting multiple simultaneous peer-to-peer traffic flows. Target applications include servers, storage, communications, embedded systems, and multi-host or intelli.

89HPES32H8G2 Features

* High Performance Non-Blocking Switch Architecture

* 32-lane 8-port PCIe switch

* Four x8 switch ports each of which can bifurcate to two x4 ports (total of eight x4 ports)

* Integrated SerDes supports 5.0 GT/s Gen2 and 2.5 GT/s Gen1 operation

* Delivers up to 32

89HPES32H8G2 Datasheet (470.96 KB)

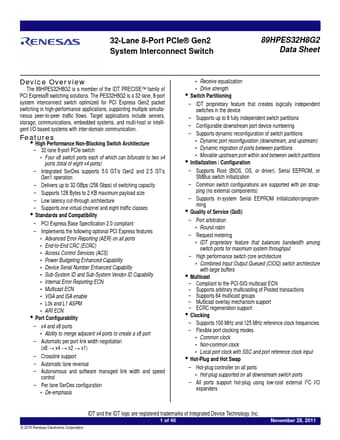

Preview of 89HPES32H8G2 PDF
89HPES32H8G2 Datasheet Preview Page 2 89HPES32H8G2 Datasheet Preview Page 3

Datasheet Details

Part number:

89HPES32H8G2

Manufacturer:

Renesas ↗

File Size:

470.96 KB

Description:

System interconnect switch.
