89HPES12N3

PCI Express Switch

89HPES12N3 Features

* High Performance PCI Express Switch

* Three x4 ports with 12 PCI Express lanes total

* Delivers 6 GBps (48 Gbps) aggregate switching capacity

* Low latency cut-through switch architecture

* Supports 128 to 2048 byte maximum payload size

* Supports one vi

89HPES12N3 General Description

Utilizing standard PCI Express interconnect, the PES12N3 provides the most efficient high-performance I/O connectivity solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 6 GBps (48 Gbps) of aggregated, full-dup.

89HPES12N3 Datasheet (719.44 KB)

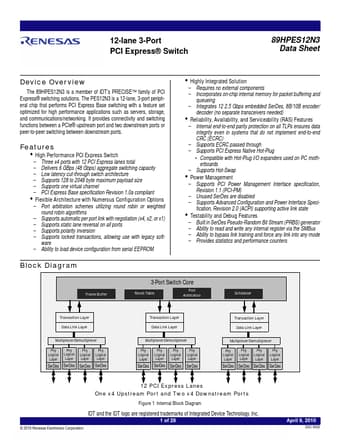

Preview of 89HPES12N3 PDF

Datasheet Details

Part number:

89HPES12N3

Manufacturer:

Renesas ↗

File Size:

719.44 KB

Description:

Pci express switch.
12-lane 3-Port PCI Express® Switch ® 89HPES12N3 Data Sheet Device Overview The 89HPES12N3 is a member of IDT’s PRECISE™ family of PCI Express® switc.
