89HPES16T4AG2

Gen2 PCI Express Switch

89HPES16T4AG2 Features

* High Performance PCI Express Switch

* Sixteen 5 Gbps Gen2 PCI Express lanes

* Four switch ports

* One x8 or x4 upstream port

* Up to three x4 downstream ports

* Low latency cut-through switch architecture

* Support for Max Payload Size up to 2048

89HPES16T4AG2 General Description

Utilizing standard PCI Express interconnect, the PES16T4AG2 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 16 GBps (128 Gbps) of aggregated, full-duplex switching capacit.

89HPES16T4AG2 Datasheet (495.32 KB)

Preview of 89HPES16T4AG2 PDF

Datasheet Details

Part number:

89HPES16T4AG2

Manufacturer:

Renesas ↗

File Size:

495.32 KB

Description:

Gen2 pci express switch.
16-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES16T4AG2 Data Sheet Device Overview The 89HPES16T4AG2 is a member of IDT’s PRECISE™ family of PCI Exp.

📁 Related Datasheet

89HPES16T4AG2 - Gen2 PCI Express Switch (IDT)
16-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES16T4AG2 Data Sheet Device Overview The 89HPES16T4AG2 is a member of IDT’s PRECISE™ family of PCI Exp.

89HPES16T4 - 16-Lane 4-Port PCI Express Switch (IDT)
16-Lane 4-Port PCI Express® Switch ® 89HPES16T4 Data Sheet Device Overview The 89HPES16T4 is a member of the IDT PRECISE™ family of PCI Express® swi.

89HPES16T4 - 16-Lane 4-Port PCI Express Switch (Renesas)
16-Lane 4-Port PCI Express® Switch ® 89HPES16T4 Data Sheet Device Overview The 89HPES16T4 is a member of the IDT PRECISE™ family of PCI Express® swi.

89HPES16T4G2 - 16-Lane 4-Port Gen2 PCI Express Switch (IDT)
.. 16-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES16T4G2 Data Sheet Advance Information* Device Overview The 89HPES16T4G2 is a m.

89HPES16T4G2 - 16-Lane 4-Port Gen2 PCI Express Switch (Renesas)
16-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES16T4G2 Data Sheet Device Overview The 89HPES16T4G2 is a member of IDT’s PRECISE™ family of PCI Expre.

89HPES16T7 - 16-Lane 7-Port PCI Express Switch (IDT)
.. 16-Lane 7-Port PCI Express® Switch 89HPES16T7 Product Brief Device Overview ◆ The 89HPES16T7 is a member of the IDT PRECISE™ .

89HPES16T7 - PCI Express Switch (Renesas)
16-Lane 7-Port PCI Express® Switch ® 89HPES16T7 Data Sheet Device Overview The 89HPES16T7 is a member of the IDT PRECISE™ family of PCI Express swit.

89HPES16H16 - PCI Express Switch (Renesas)
16-Lane 16-Port PCI Express® Switch ® 89HPES16H16 Data Sheet Device Overview The 89HPES16H16 is a member of the IDT PRECISE™ family of PCI Express® .

TAGS

89HPES16T4AG2 Gen2 PCI Express Switch Renesas

Image Gallery

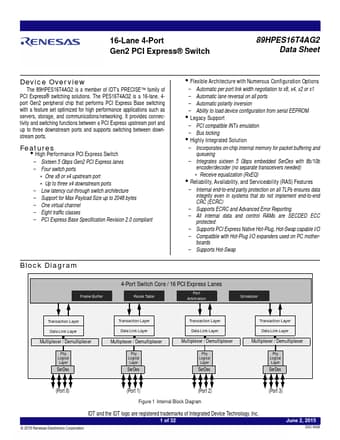

89HPES16T4AG2 Datasheet Preview Page 2 89HPES16T4AG2 Datasheet Preview Page 3
