89HPES16T4G2

16-Lane 4-Port Gen2 PCI Express Switch

89HPES16T4G2 Features

* Block Diagram 4-Port Switch Core / 16 PCI Express Lanes Frame Buffer Route Table Port Arbitration Scheduler Transaction Layer Data Link Layer Transaction Layer Data Link Layer Transaction Layer Data Link Layer Transaction Layer Data Link Layer Multiplexer / Demultiplexer Phy Logical Layer Mul

89HPES16T4G2 General Description

Utilizing standard PCI Express interconnect, the PES16T4G2 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 16 GBps (128 Gbps) of aggregated, full-duplex switching capacity.

89HPES16T4G2 Datasheet (602.12 KB)

Preview of 89HPES16T4G2 PDF

Datasheet Details

Part number:

89HPES16T4G2

Manufacturer:

IDT

File Size:

602.12 KB

Description:

16-lane 4-port gen2 pci express switch.

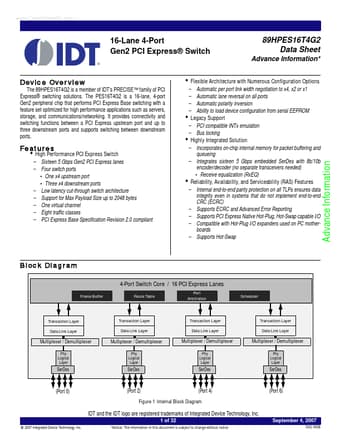

www.DataSheet4U.com 16-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES16T4G2 Data Sheet Advance Information
* Device Overview The 89HPES16T4G2 is.
