89HPES16T4AG2 - Gen2 PCI Express Switch

IDT

📥 Download Datasheet

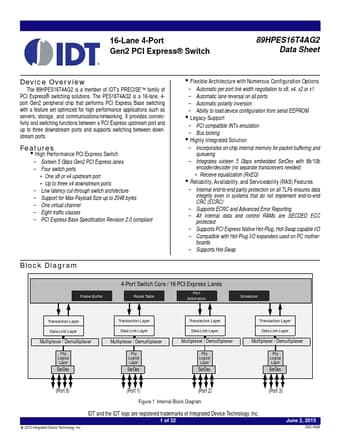

89HPES16T4AG2 Datasheet Preview — Preview of 89HPES16T4AG2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 89HPES16T4AG2
Manufacturer: IDT
File Size: 266.99 KB
Datasheet: 89HPES16T4AG2-IDT.pdf
Description: Gen2 PCI Express Switch

89HPES16T4AG2 Product details

Features

High Performance PCI Express Switch.
Sixteen 5 Gbps Gen2 PCI Express lanes.
Four switch ports.
One x8 or x4 upstream port.
Up to three x4 downstream ports.
Low latency cut-through switch architecture.
Support for Max Payload Size up to 2048 bytes.
One virtual channel.
Eight traffic classes.
PCI Express Base Specification Revision 2.0 compliant Block Diagram.
Flexible Architecture with.
