89HPES16T7

16-Lane 7-Port PCI Express Switch

89HPES16T7 Features

* High Performance PCI Express Switch

* Sixteen 2.5 Gbps PCI Express lanes

* Seven switch ports

* Upstream port configurable up to x8

* Two downstream ports configurable up to x4, four downstream ports are x1

* Low-latency cut-through switch archi

89HPES16T7 General Description

Utilizing standard PCI Express interconnect, the PES16T7 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 8 GBps (64 Gbps) of aggregated, full-duplex switching capacity thr.

89HPES16T7 Datasheet (85.49 KB)

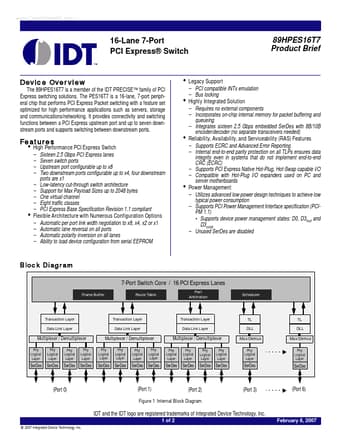

Preview of 89HPES16T7 PDF

Datasheet Details

Part number:

89HPES16T7

Manufacturer:

IDT

File Size:

85.49 KB

Description:

16-lane 7-port pci express switch.
www.DataSheet4U.com 16-Lane 7-Port PCI Express® Switch 89HPES16T7 Product Brief Device Overview
* The 89HPES16T7 is a member of the IDT PRECI.
