89HPES16NT2 16-Lane 2-Port Non-Transparent PCI Express Switch

2 of 3 March 14, 2007 IDT 89HPES16NT2 Product Brief RC Processor Up PCIe System Interconnect Switch DP PES12NT3 DP PES12NT3 DP PES12NT3 DP PES12NT3 DP PES12NT3 DP PES12NT3 EP Processor w/o ATU EP Processor w/o ATU EP Processor w/o ATU EP Processor w/o ATU EP Processor w/o ATU E.

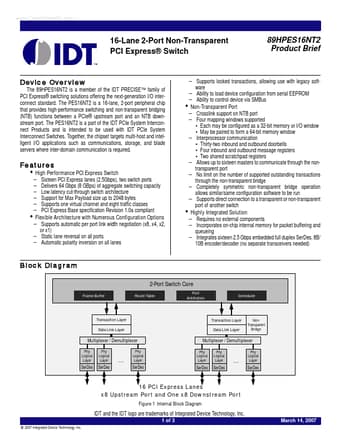

www.DataSheet4U.com 16-Lane 2-Port Non-Transparent PCI Express® Switch 89HPES16NT2 Product Brief Device Overview The 89HPES16NT2 is a member of the IDT PRECISE™ family of PCI Express® switching solutions offering the next-generation I/O interconnect standard. The PES16NT2 is a 16-lane, 2-port peripheral chip that provides high-performance switching and non-transparent bridging (NTB) functions between a PCIe® upstream port and an NTB downstream port. The PES16NT2 is a part of the IDT PCIe Sys.

89HPES16NT2 Features

* High Performance PCI Express Switch

* Sixteen PCI Express lanes (2.5Gbps), two switch ports

* Delivers 64 Gbps (8 GBps) of aggregate switching capacity

* Low latency cut-through switch architecture

* Support for Max Payload size up to 2048 bytes

* Supports one

89HPES16NT2 Datasheet (80.00 KB)
