89HPES12T3G2 Datasheet - IDT

12-Lane 3-Port Gen2 PCI Express Switch

89HPES12T3G2 Features

* Block Diagram 3-Port Switch Core / 12 PCI Express Lanes Frame Buffer Route Table Port Arbitration Scheduler Transaction Layer Data Link Layer Transaction Layer Data Link Layer Transaction Layer Data Link Layer Multiplexer / Demultiplexer Phy Logical Layer Multiplexer / Demultiplexer Phy Logica

89HPES12T3G2 General Description

Utilizing standard PCI Express interconnect, the PES12T3G2 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 12 GBps (96 Gbps) of aggregated, full-duplex switching capacity .

89HPES12T3G2 Datasheet (284.08 KB)

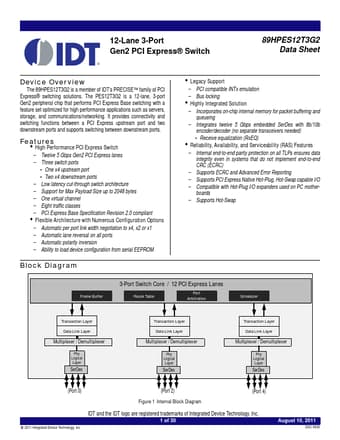

Preview of 89HPES12T3G2 PDF

Datasheet Details

Part number:

89HPES12T3G2

Manufacturer:

IDT

File Size:

284.08 KB

Description:

12-lane 3-port gen2 pci express switch.
www.DataSheet4U.com 12-Lane 3-Port Gen2 PCI Express® Switch ® 89HPES12T3G2 Data Sheet Advance Information Device Overview The 89HPES12T3G2 is.
