89HPES16T4 Description

16-Lane 4-Port PCI Express® Switch ® 89HPES16T4 Data Sheet Device Overview The 89HPES16T4 is a member of the IDT PRECISE™ family of PCI Express® swi.
Utilizing standard PCI Express interconnect, the PES16T4 provides the most efficient I/O connectivity solution for applications requiring high through.

89HPES16T4 Features

* High Performance PCI Express Switch
* Sixteen 2.5 Gbps PCI Express lanes
* Four switch ports
* Upstream port configurable up to x8
* Downstream ports configurable up to x4
* Low-latency cut-through switch architecture
* Support for Max Payload Size u

📥 Download Datasheet

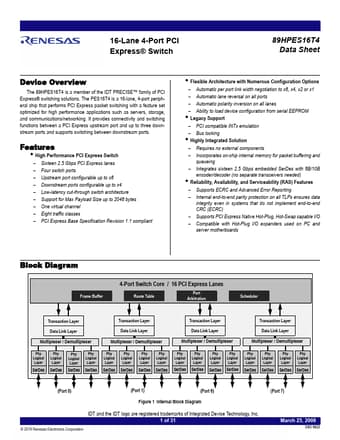

89HPES16T4 Datasheet Preview — Preview of 89HPES16T4 PDF

Datasheet Details

Part number: 89HPES16T4
Manufacturer: Renesas ↗
File Size: 0.95 MB
Datasheet: 89HPES16T4-Renesas.pdf
Description: 16-Lane 4-Port PCI Express Switch
