8V19N407 - FemtoClock NG Jitter Attenuator and Clock Synthesizer

IDT

📥 Download Datasheet

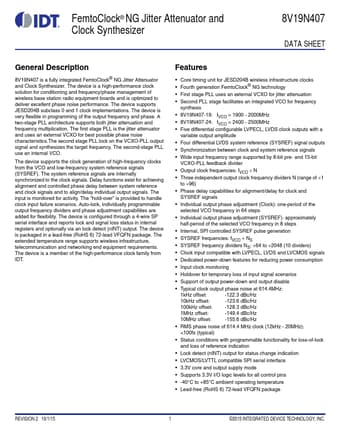

8V19N407 Datasheet Preview — Preview of 8V19N407 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	8V19N407
Manufacturer	IDT
File Size	762.22 KB
Description	FemtoClock NG Jitter Attenuator and Clock Synthesizer
Datasheet	8V19N407-IDT.pdf

8V19N407 Product details

Description

8V19N407 is a fully integrated FemtoClock® NG Jitter Attenuator and Clock Synthesizer.

Features

Core timing unit for JESD204B wireless infrastructure clocks.
Fourth generation FemtoClock® NG technology.
First stage PLL uses an external VCXO for jitter attenuation.
Second PLL stage facilitates an integrated VCO for frequency synthesis.
8V19N407-19: fVCO = 1900 - 2000MHz.
8V19N407-24: fVCO = 2400 - 2500MHz.
Five differential configurable LVPECL, LVDS clock outputs with a variable output amplitude.
Four different.
