8V19N491-24 Jitter Attenuator and Clock Synthesizer

The 8V19N491-24 is a fully integrated FemtoClock NG Jitter Attenuator and Clock Synthesizer that is designed as a high-performance clock solution for conditioning and frequency/phase management of wireless base station radio equipment boards. The device is optimized to deliver excellent phase noise .

8V19N491-24 Features

* ▪ High-performance clock RF-PLL with support for JESD204B/C ▪ Optimized for low phase noise: -155dBc/Hz (1MHz offset; 245.76MHz clock, and 491.52MHz VCXO) ▪ Integrated phase noise of 80fs RMS typical (12k-20MHz). ▪ Dual-PLL architecture ▪ First PLL stage with external VCXO for clock jitter attenuati

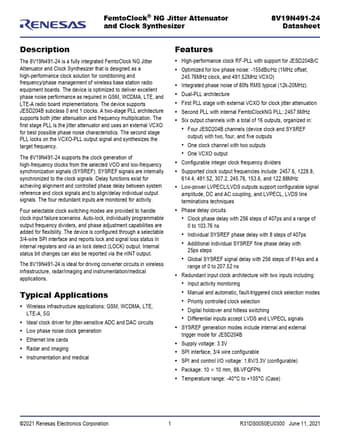

8V19N491-24 Datasheet (2.27 MB)
