8V19N408 - FemtoClock NG Jitter Attenuator and Clock Synthesizer

IDT

📥 Download Datasheet

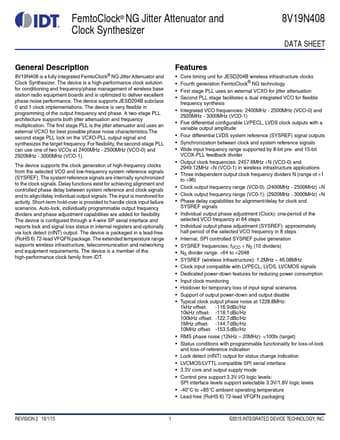

8V19N408 Datasheet Preview — Preview of 8V19N408 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	8V19N408
Manufacturer	IDT
File Size	735.64 KB
Description	FemtoClock NG Jitter Attenuator and Clock Synthesizer
Datasheet	8V19N408-IDT.pdf

8V19N408 Product details

Description

8V19N408 is a fully integrated FemtoClock® NG Jitter Attenuator and Clock Synthesizer.

Features

Core timing unit for JESD204B wireless infrastructure clocks.
Fourth generation FemtoClock® NG technology.
First stage PLL uses an external VCXO for jitter attenuation.
Second PLL stage facilitates a dual integrated VCO for flexible frequency synthesis.
Integrated VCO frequencies: 2400MHz - 2500MHz (VCO-0) and 2920MHz - 3000MHz (VCO-1).
Five differential configurable LVPECL, LVDS clock outputs with a variable output amplitude.
Four.
