8V19N490A - Jitter Attenuator and Clock Synthesizer

Renesas

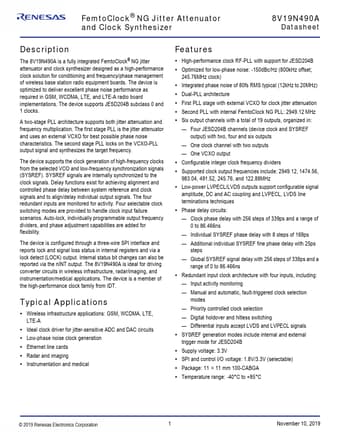

8V19N490A Datasheet Preview — Preview of 8V19N490A PDF

Datasheet Details

Part number	8V19N490A
Manufacturer	Renesas ↗
File Size	1.30 MB
Description	Jitter Attenuator and Clock Synthesizer
Datasheet	8V19N490A-Renesas.pdf

8V19N490A Product details

Description

The 8V19N490A is a fully integrated FemtoClock® NG jitter attenuator and clock synthesizer designed as a high-performance clock solution for conditioning and frequency/phase management of wireless base station radio equipment boards.

Features

High-performance clock RF-PLL with support for JESD204B.
Optimized for low-phase noise: -150dBc/Hz (800kHz offset; 245.76MHz clock).
Integrated phase noise of 80fs RMS typical (12kHz to 20MHz).
Dual-PLL architecture.
First PLL stage with external VCXO for clock jitter attenuation.
Second PLL with internal FemtoClock NG PLL: 2949.12 MHz.
Six output channels with a total of 19 outputs, organized in:.
Four JESD204B channels (device clock and SYSREF outpu.
