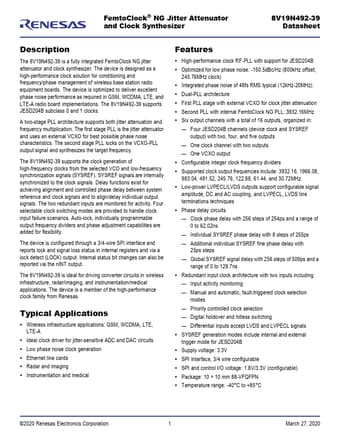

8V19N492-39 Datasheet Preview — Preview of 8V19N492-39 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	8V19N492-39
Manufacturer	Renesas ↗
File Size	2.21 MB
Description	Jitter Attenuator and Clock Synthesizer
Datasheet	8V19N492-39-Renesas.pdf

8V19N492-39 Product details

Description

The 8V19N492-39 is a fully integrated FemtoClock NG jitter attenuator and clock synthesizer.

Features

High-performance clock RF-PLL with support for JESD204B.
Optimized for low phase noise: -150.5dBc/Hz (800kHz offset; 245.76MHz clock).
Integrated phase noise of 46fs RMS typical (12kHz-20MHz).
Dual-PLL architecture.
First PLL stage with external VCXO for clock jitter attenuation.
Second PLL with internal FemtoClock NG PLL: 3932.16MHz.
Six output channels with a total of 16 outputs, organized in:.
Four JESD204B channels (device clock and SYSREF output.
