ICS542 - CLOCK DIVIDER

IDT

ICS542 Description

CLOCK DIVIDER DATASHEET ICS542 .
The ICS542 is cost effective way to produce a high-quality clock output divided from a clock input.

ICS542 Features

* 8-pin SOIC package, Pb free
* Available in RoHS compliant package
* IDT’s lowest cost clock divider
* Low skew (500 ps) outputs. One is /2 of the other
* Easy to use with other generators and buffers
* Input clock frequency up to 156 MHz
* Ou

📥 Download Datasheet

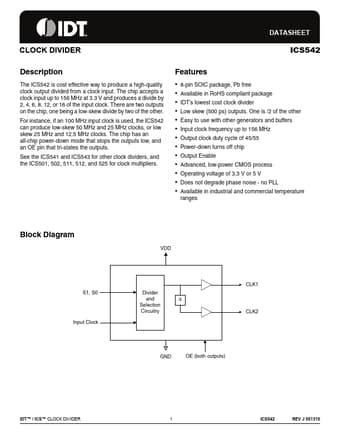

ICS542 Datasheet Preview — Preview of ICS542 PDF

Datasheet Details

Part number: ICS542
Manufacturer: IDT
File Size: 115.82 KB
Datasheet: ICS542-IDT.pdf
Description: CLOCK DIVIDER
