ICS548-03 - Low Skew Clock Inverter and Divider

Product Overview

ICST

Datasheet Details

Part number	ICS548-03
Manufacturer	ICST
File Size	85.04 KB
Description	Low Skew Clock Inverter and Divider
Datasheet	ICS548-03 Datasheet

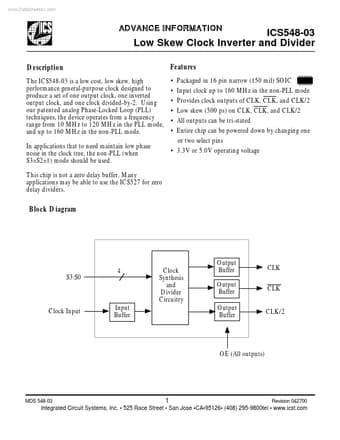

Additional preview pages of the ICS548-03 datasheet.

Product details

Description

The ICS548-03 is a low cost, low skew, high performance general-purpose clock designed to produce a set of one output clock, one inverted output clock, and one clock divided-by-2.

Features

Packaged in 16 pin narrow (150 mil) SOIC Input clock up to 160 MHz in the non-PLL mode Provides clock outputs of CLK, CLK, and CLK/2 Low skew (500 ps) on CLK, CLK, and CLK/2 All outputs can be tri-stated Entire chip can be powered down by changing one or two select pins.
3.3V or 5.0V operating voltage.
