ICS543 - PRELIMINARY INFORMATION Clock Divider and 2X Multiplier

ICST

ICS543 Description

www.DataSheet4U.com PRELIMINARY INFORMATION I C R O C LOC K .
The ICS543 is a cost effective way to produce a high quality clock output divided from a clock input.

ICS543 Features

* Packaged in 8 pin SOIC
* Low cost clock divider and 2X multiplier
* Low skew (500ps) outputs. One is ÷ 2 of other.
* Easy to use with other generators and buffers
* Input clock frequency up to 90 MHz at 5 V
* Output clock duty cycle of 45/55

ICS543 Applications

* Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does not auth

📥 Download Datasheet

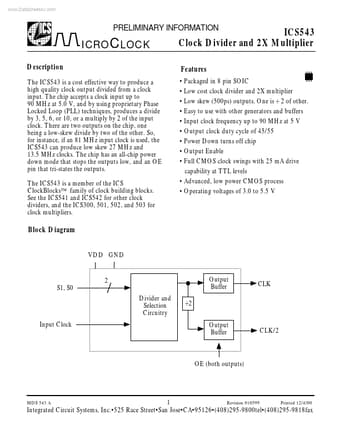

ICS543 Datasheet Preview — Preview of ICS543 PDF

Datasheet Details

Part number: ICS543
Manufacturer: ICST
File Size: 78.55 KB
Datasheet: ICS543_ICST.pdf
Description: PRELIMINARY INFORMATION Clock Divider and 2X Multiplier
