ICS541

PRELIMINARY INFORMATION PLL Clock Divider

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor ICS ICS541M Quest Components 78 43 units
$5.55

ICS541 Datasheet (77.44 KB)

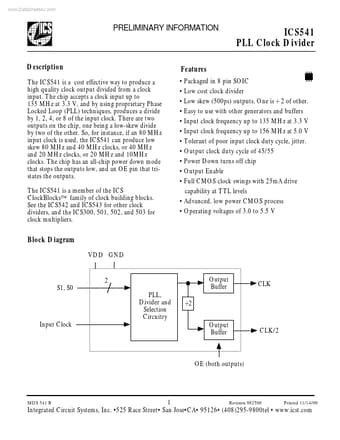

Preview of ICS541 PDF

Datasheet Details

Part number:

ICS541

Manufacturer:

ICST

File Size:

77.44 KB

Description:

Preliminary information pll clock divider.

ICS541 Features

* Packaged in 8 pin SOIC

* Low cost clock divider

* Low skew (500ps) outputs. One is ÷ 2 of other.

* Easy to use with other generators and buffers

* Input clock frequency up to 135 MHz at 3.3 V

* Input clock frequency up to 156 MHz at 5.0 V

* T

ICS541 General Description

The ICS541 is a cost effective way to produce a high quality clock output divided from a clock input. The chip accepts a clock input up to 135 MHz at 3.3 V, and by using proprietary Phase Locked Loop (PLL) techniques, produces a divide by 1, 2, 4, or 8 of the input clock. There are two outputs on th.
