IDT29FCT520BT - MULTILEVEL PIPELINE REGISTERS

Product Overview

IDT

📥 Download Datasheet

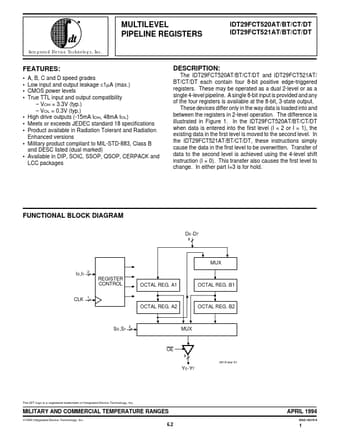

IDT29FCT520BT MULTILEVEL PIPELINE REGISTERS by IDT - Datasheet Preview — Datasheet preview – IDT29FCT520BT

Datasheet Details

Part number	IDT29FCT520BT
Manufacturer	IDT
File Size	93.69 KB
Description	MULTILEVEL PIPELINE REGISTERS
Datasheet	IDT29FCT520BT Datasheet
Note	This datasheet PDF includes multiple part numbers: IDT29FCT520BT, IDT29FCT521DT. Please refer to the document for exact specifications by model.
Additional preview pages of the IDT29FCT520BT datasheet.

Product details

Description

The IDT29FCT520AT/BT/CT/DT and IDT29FCT521AT/ BT/CT/DT each contain four 8-bit positive edge-triggered registers.

Features

A, B, C and D speed grades.
Low input and output leakage ≤1µA (max. ).
CMOS power levels.
True TTL input and output compatibility.
VOH = 3.3V (typ. ).
VOL = 0.3V (typ. ).
High drive outputs (-15mA IOH, 48mA IOL).
Meets or exceeds JEDEC standard 18 specifications.
Product available in Radiation Tolerant and Radiation Enhanced versions.
Military product compliant to MIL-STD-883, Class B and DESC listed (dual m.
