IDT29FCT521CT

MULTILEVEL PIPELINE REGISTERS

IDT29FCT521CT Features

* A, B, C and D speed grades Low input and output leakage ≤1µA (max.) CMOS power levels True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.) High drive outputs (-15mA IOH, 48mA IOL) Meets or exceeds JEDEC standard 18 s

IDT29FCT521CT General Description

The IDT29FCT520AT/BT/CT/DT and IDT29FCT521AT/ BT/CT/DT each contain four 8-bit positive edge-triggered registers. These may be operated as a dual 2-level or as a single 4-level pipeline. A single 8-bit input is provided and any of the four registers is available at the 8-bit, 3-state output. These .

IDT29FCT521CT Datasheet (93.69 KB)

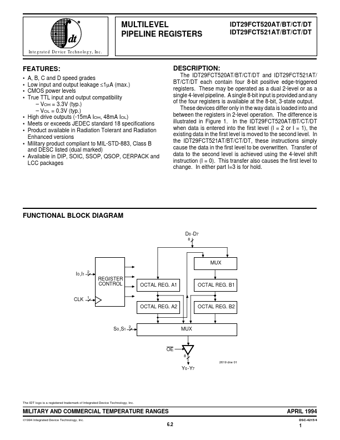

Preview of IDT29FCT521CT PDF

Datasheet Details

Part number:

IDT29FCT521CT

Manufacturer:

Integrated Device

File Size:

93.69 KB

Description:

Multilevel pipeline registers.
