IDT29FCT521DT - MULTILEVEL PIPELINE REGISTERS

Product Overview

Integrated Device

📥 Download Datasheet

IDT29FCT521DT MULTILEVEL PIPELINE REGISTERS by Integrated Device - Datasheet Preview — Datasheet preview – IDT29FCT521DT

Datasheet Details

Part number	IDT29FCT521DT
Manufacturer	Integrated Device
File Size	93.69 KB
Description	MULTILEVEL PIPELINE REGISTERS
Datasheet	IDT29FCT521DT Datasheet

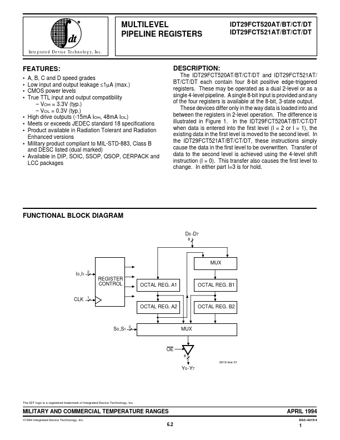

Additional preview pages of the IDT29FCT521DT datasheet.

Product details

Description

The IDT29FCT520AT/BT/CT/DT and IDT29FCT521AT/ BT/CT/DT each contain four 8-bit positive edge-triggered registers.

Features

A, B, C and D speed grades Low input and output leakage ≤1µA (max. ) CMOS power levels True TTL input and output compatibility.
VOH = 3.3V (typ. ).
VOL = 0.3V (typ. ) High drive outputs (-15mA IOH, 48mA IOL) Meets or exceeds JEDEC standard 18 specifications Product available in Radiation Tolerant and Radiation Enhanced versions Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked) Available in DIP, SOIC, SSOP, QSO.
