IDT29FCT520C - MULTILEVEL PIPELINE REGISTER

Product Overview

Integrated Device

📥 Download Datasheet

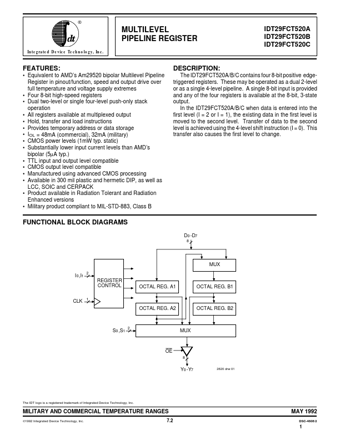

IDT29FCT520C MULTILEVEL PIPELINE REGISTER by Integrated Device - Datasheet Preview — Datasheet preview – IDT29FCT520C

Datasheet Details

Part number	IDT29FCT520C
Manufacturer	Integrated Device
File Size	58.20 KB
Description	MULTILEVEL PIPELINE REGISTER
Datasheet	IDT29FCT520C Datasheet
Additional preview pages of the IDT29FCT520C datasheet.

Product details

Description

The IDT29FCT520A/B/C contains four 8-bit positive edgetriggered registers.

Features

Equivalent to AMD’s Am29520 bipolar Multilevel Pipeline Register in pinout/function, speed and output drive over full temperature and voltage supply extremes.
Four 8-bit high-speed registers.
Dual two-level or single four-level push-only stack operation.
All registers available at multiplexed output.
Hold, transfer and load instructions.
Provides temporary address or data storage.
IOL = 48mA (commercial), 32mA (military).
