IDT39C705B

16-Word By 4-Bit Dual-Port RAM

IDT39C705B Features

* Fast -Available in either industry-standard speed or 20% speed upgraded versions

* Low-power CEMOS'

* -Military - 50mA (max.) -Commercial - 40mA (max.)

* 16-word x 4-bit, dual-port CMOS RAM

* Non-inverting data output with respect to data input

* Easily

IDT39C705B General Description

The IDT39C705s are high-performance 16-word by 4-bit, dualport RAMs. Addressing any of the 16-words is performed via the 4-bit A address field with the data appearing on the A output port. The same respective operation holds true for the B address input/output port and can happen simultaneously wit.

IDT39C705B Datasheet (126.41 KB)

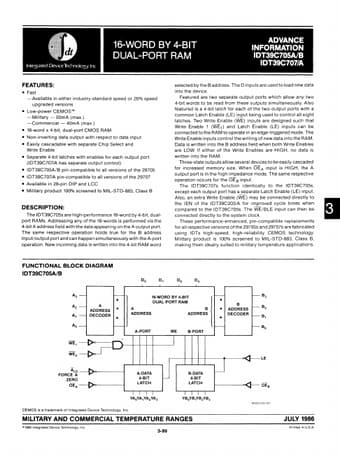

Preview of IDT39C705B PDF

Datasheet Details

Part number:

IDT39C705B

Manufacturer:

IDT

File Size:

126.41 KB

Description:

16-word by 4-bit dual-port ram.
