IDT709149S Datasheet - IDT

IDT709149S HIGH-SPEED 36K (4K x 9-BIT) SYNCHRONOUS PIPELINED DUAL-PORT SRAM

The IDT709149 is a high-speed 4K x 9 bit synchronous Dual-Port SRAM. The memory array is based on Dual-Port memory cells to allow simultaneous access from both ports. Registers on control, data, and address inputs provide low set-up and hold times. The timing latitude provided by this approach will .

IDT709149S Features

* x x IDT709149S x x x Architecture based on Dual-Port SRAM cells – Allows full simultaneous access from both ports High-speed clock-to-data output times – Commercial: 8/10/12ns (max.) Low-power operation – IDT709149S Active: 1500mW (typ.) Standby: 75mW (typ.) 4K X 9 bits Synchronous operation – 4

IDT709149S_IDT.pdf

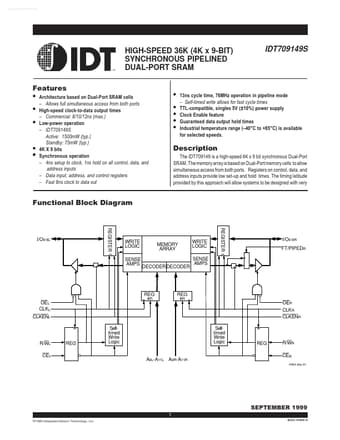

Preview of IDT709149S PDF
IDT709149S Datasheet Preview Page 2 IDT709149S Datasheet Preview Page 3

Datasheet Details

Part number:

IDT709149S

Manufacturer:

IDT

File Size:

160.73 KB

Description:

High-speed 36k (4k x 9-bit) synchronous pipelined dual-port sram.
