IDT70914S Datasheet - IDT

IDT70914S HIGH SPEED 36K (4K X 9) SYNCHRONOUS DUAL-PORT RAM

The IDT70914 is a high-speed 4K x 9 bit synchronous Dual-Port RAM. The memory array is based on Dual-Port memory cells to allow simultaneous access from both ports. Registers on control, data, and address inputs provide low set-up and hold times. The timing latitude provided by this approach allow s.

IDT70914S Features

* x IDT70914S x x x High-speed clock-to-data output times

* Military: 20/25ns (max.)

* Commercial: 12/15/20ns (max.) Low-power operation

* IDT70914S Active: 850 mW (typ.) Standby: 50 mW (typ.) Architecture based on Dual-Port RAM cells

* Allows full simultaneous acc

IDT70914S_IDT.pdf

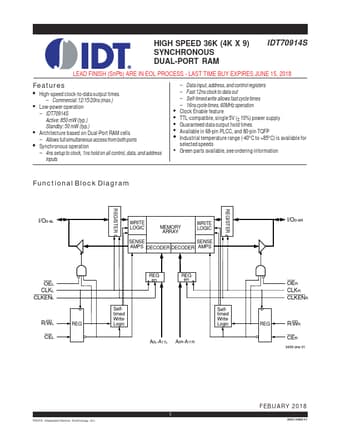

Preview of IDT70914S PDF
IDT70914S Datasheet Preview Page 2 IDT70914S Datasheet Preview Page 3

Datasheet Details

Part number:

IDT70914S

Manufacturer:

IDT

File Size:

188.65 KB

Description:

High speed 36k (4k x 9) synchronous dual-port ram.
