IDT71V3556XSA, IDT71V3556XS, 3.3V Synchronous ZBT SRAMs

128K x 36, 256K x 18 3.3V Synchronous ZBT SRAMs 3.3V I/O, Burst Counter Pipelined Outputs IDT71V3556S/XS IDT71V3558S/XS IDT71V3556SA/XSA IDT71V3558SA.

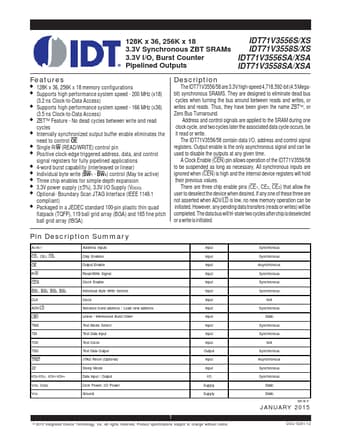

datasheet Preview Page 1 from Datasheet4u.com

IDT71V3556XS-IDT.pdf

IDT71V3556XSA Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT71V3556XSA, IDT71V3556XS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT71V3556XSA, IDT71V3556XS

Manufacturer:

IDT

File Size:

490.25 KB

Description:

3.3V Synchronous ZBT SRAMs

Note:

This datasheet PDF includes multiple part numbers: IDT71V3556XSA, IDT71V3556XS.
Please refer to the document for exact specifications by model.

Features

* 128K x 36, 256K x 18 memory configurations
* Supports high performance system speed - 200 MHz (x18) (3.2 ns Clock-to-Data Access)
* Supports high performance system speed - 166 MHz (x36) (3.5 ns Clock-to-Data Access)
* ZBTTM Feature - No dead cycles between write and read cycles

Applications

* 4-word burst capability (interleaved or linear)
* Individual byte write (BW1 - BW4) control (May tie active)
* Three chip enables for simple depth expansion
* 3.3V power supply (±5%), 3.3V I/O Supply (VDDQ)
* Optional- Boundary Scan JTAG Interface (IEEE 1149.1 compliant)
