IDT74ALVCH374 - 3.3V CMOS OCTAL POSITIVE EDGE-TRIGGERED D-TYPE FLIP-FLOP

Datasheet Summary

Description

This octal postive edge-triggered D-type flip-flop is built using advanced dual metal CMOS technology.

The ALVCH374 device is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

Features

  • 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) 1.27mm pitch SOIC, 0.65mm pitch SSOP, 0.635mm pitch QSOP, 0.65mm TSSOP packages Extended commercial range of -40°C to +85°C VCC = 3.3V ±0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range VCC = 2.5V ±0.2V CMOS power levels (0.4µ W typ. static) R.

📥 Download Datasheet

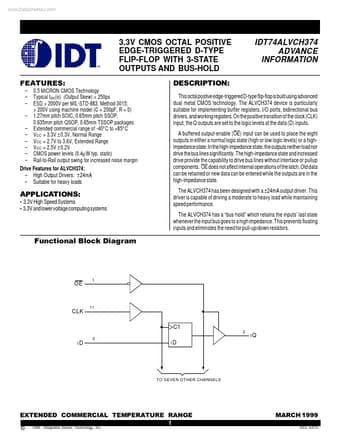

Datasheet preview – IDT74ALVCH374

Datasheet Details

Part number IDT74ALVCH374
Manufacturer IDT
File Size 109.57 KB
Description 3.3V CMOS OCTAL POSITIVE EDGE-TRIGGERED D-TYPE FLIP-FLOP
Datasheet download datasheet IDT74ALVCH374 Datasheet
Additional preview pages of the IDT74ALVCH374 datasheet.

📁 Similar Datasheet

Other Datasheets by IDT

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com IDT74ALVCH374 3.3V CMOS OCTAL POSITIVE EDGE-TRIGGERED D-TYPE EXTENDED COMMERCIAL TEMPERATURE RANGE 3.3V CMOS OCTAL POSITIVE EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS AND BUS-HOLD FEATURES: – – – – – – – – – – 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) 1.27mm pitch SOIC, 0.65mm pitch SSOP, 0.635mm pitch QSOP, 0.65mm TSSOP packages Extended commercial range of -40°C to +85°C VCC = 3.3V ±0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range VCC = 2.5V ±0.2V CMOS power levels (0.4µ W typ.
