IDT74ALVCH162344

3.3V CMOS 1-BIT TO 4-BIT ADDRESS DRIVER

IDT74ALVCH162344 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* VCC = 3.3V ± 0.3V, Normal Range

* VCC = 2.7V to 3.6V, Extended Range www.DataSheet4U.com

IDT74ALVCH162344 General Description

This 1-bit to 4-bit address driver is built using advanced dual metal CMOS technology. The ALVCH162344 device is used in applications in which four separate memory locations must be addressed by a single address. The ALVCH162344 has series resistors in the device output structure which will signifi.

IDT74ALVCH162344 Datasheet (118.22 KB)

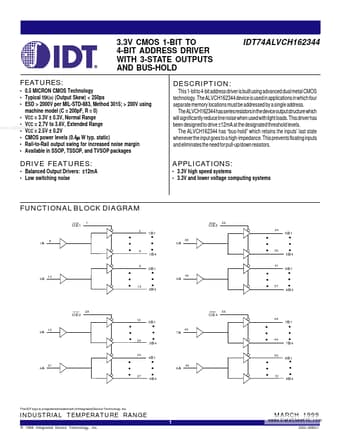

Preview of IDT74ALVCH162344 PDF

Datasheet Details

Part number:

IDT74ALVCH162344

Manufacturer:

Integrated Device Technology

File Size:

118.22 KB

Description:

3.3v cmos 1-bit to 4-bit address driver.
IDT74ALVCH162344 3.3V CMOS 1-BIT TO 4-BIT ADDRESS DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 1-BIT TO 4-BIT ADDRESS DRIVER W.
