IDT74ALVCH16345 Datasheet - Integrated Device Technology

IDT74ALVCH16345 3.3V CMOS REGISTERED ADDRESS LINE DRIVER

IDT74ALVCH16345 3.3V CMOS REGISTERED ADDRESS LINE DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS REGISTERED ADDRESS LINE DRIVER WITH 3-STATE OUTPUTS AND BUS-HOLD 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range www.DataSheet4U.com VCC = 2.5V ± 0.2V.

IDT74ALVCH16345 Datasheet (120.27 KB)

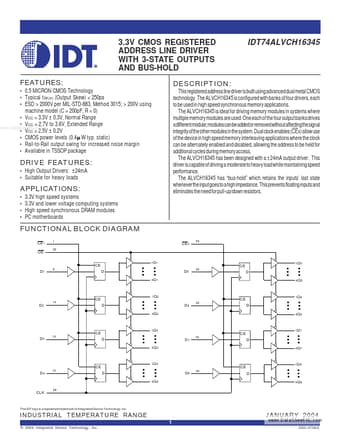

Preview of IDT74ALVCH16345 PDF

Datasheet Details

Part number:

IDT74ALVCH16345

Manufacturer:

Integrated Device Technology

File Size:

120.27 KB

Description:

3.3v cmos registered address line driver.
