IDT74ALVCH162373

16-bit transparent D-type latch

IDT74ALVCH162373 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* VCC = 3.3V ± 0.3V, Normal Range

* VCC = 2.7V to 3.6V, Extended Range

* VCC = 2.5V ± 0.2V

IDT74ALVCH162373 General Description

This 16-bit transparent D-type latch is built using advanced dual metal CMOS technology. The ALVCH162373 is particularly suitable for imple-menting buffer registers, I/O ports, bidirectional bus drivers, and working registers. This device can be used as two 8-bit latches or one16-bit latch. When th.

IDT74ALVCH162373 Datasheet (221.66 KB)

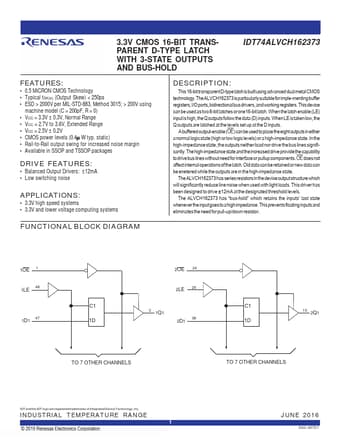

Preview of IDT74ALVCH162373 PDF

Datasheet Details

Part number:

IDT74ALVCH162373

Manufacturer:

Renesas ↗

File Size:

221.66 KB

Description:

16-bit transparent d-type latch.
IDT74ALVCH162373 3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS AND BUS.
