IDT74ALVCH16245 Datasheet - Integrated Device Tech

IDT74ALVCH16245 3.3V CMOS 16-BIT BUS TRANSCEIVER

IDT74ALVCH16245 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND BUS-HOLD 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range VCC = 2.5V ± 0.2V CMOS power levels (0.4µ W.

IDT74ALVCH16245_IntegratedDeviceTechnology.pdf

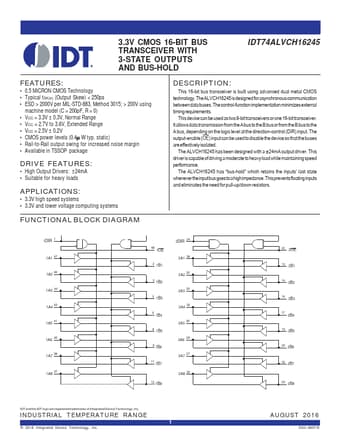

Preview of IDT74ALVCH16245 PDF
IDT74ALVCH16245 Datasheet Preview Page 2 IDT74ALVCH16245 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74ALVCH16245

Manufacturer:

Integrated Device Tech

File Size:

95.92 KB

Description:

3.3v cmos 16-bit bus transceiver.
