IDT74ALVC16245

3.3V CMOS 16-BIT BUS TRANSCEIVER

IDT74ALVC16245 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* VCC = 3.3V ± 0.3V, Normal Range

* VCC = 2.7V to 3.6V, Extended Range

* VCC = 2.5V ± 0.2V

IDT74ALVC16245 General Description

This 16-bit bus transceiver is built using advanced dual metal CMOS technology. The ALVC16245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements. This device can be used as two 8-bit transceivers or one 16-bit tr.

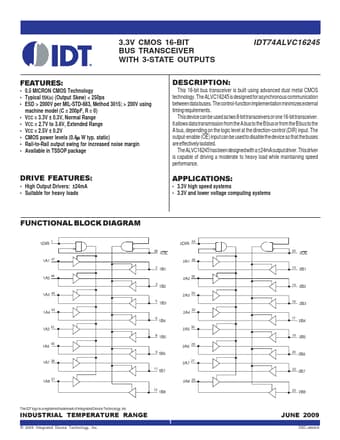

IDT74ALVC16245 Datasheet (84.91 KB)

Preview of IDT74ALVC16245 PDF

Datasheet Details

Part number:

IDT74ALVC16245

Manufacturer:

Integrated Device Tech

File Size:

84.91 KB

Description:

3.3v cmos 16-bit bus transceiver.
IDT74ALVC16245 3.3V CMOS 16-BIT BUS TRANSCIEVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS INDUSTRIALTEMPERATURERANGE.
