IDT74ALVC16244A, 16-BIT BUFFER/DRIVER

IDT74ALVC16244A 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIALTEMPERATURERANGE ID.
This 16-bit buffer/driver is built using advanced dual metal CMOS technology.

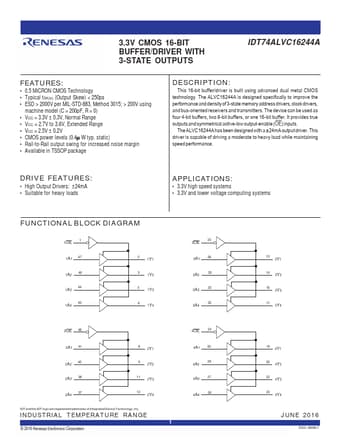

datasheet Preview Page 1 from Datasheet4u.com

IDT74ALVC16244A-Renesas.pdf

IDT74ALVC16244A Datasheet Preview — Preview of IDT74ALVC16244A PDF

Datasheet Details

Part number:

IDT74ALVC16244A

Manufacturer:

Renesas ↗

File Size:

246.92 KB

Description:

16-BIT BUFFER/DRIVER

Features

* 0.5 MICRON CMOS Technology
* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* VCC = 3.3V ± 0.3V, Normal Range
* VCC = 2.7V to 3.6V, Extended Range
* VCC = 2.5V ± 0.2V

Applications

* 3.3V high speed systems
* 3.3V and lower voltage computing systems FUNCTIONAL BLOCK DIAGRAM 1OE 1 1A1 47 1A2 46 1A3 44 1A4 43 2 1Y1 3 1Y2 5 1Y3 6 1Y4 3OE 25 3A1 36 3A2 35 3A3 33 32 3A4 2OE 48 2A1 41 8 2Y1 2A2 40 2A3 38 2A4 37 9 2Y2 11 2Y3 12 2Y4 IDT and the IDT logo are
