IDT74ALVC162244

3.3V CMOS 16-BIT BUFFER/DRIVER

IDT74ALVC162244 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* VCC = 3.3V ± 0.3V, Normal Range

* VCC = 2.7V to 3.6V, Extended Range

* VCC = 2.5V ± 0.2V

IDT74ALVC162244 General Description

This 16-bit buffer/driver is built using advanced dual metal CMOS technology. The ALVC162244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, t.

IDT74ALVC162244 Datasheet (224.83 KB)

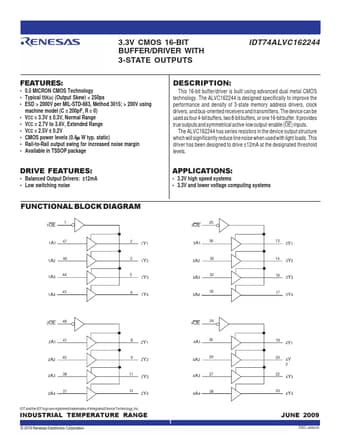

Preview of IDT74ALVC162244 PDF

Datasheet Details

Part number:

IDT74ALVC162244

Manufacturer:

Renesas ↗

File Size:

224.83 KB

Description:

3.3v cmos 16-bit buffer/driver.
IDT74ALVC162244 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIALTEMPERATURERANGE ID.
