IDT74ALVC162334

16-bit universal bus driver

IDT74ALVC162334 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* VCC = 3.3V ± 0.3V, Normal Range

* VCC = 2.7V to 3.6V, Extended Range

* VCC = 2.5V ± 0.2V

IDT74ALVC162334 General Description

This 16-bit universal bus driver is built using advanced dual metal CMOS technology. Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low. When LE is high, the A data is latched if the clock (CLK) in.

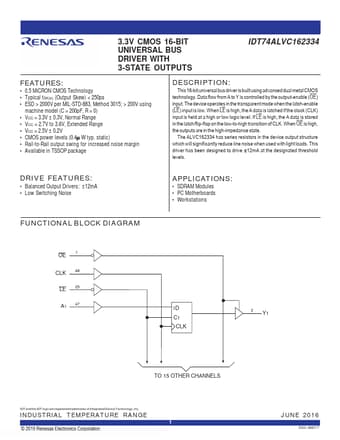

IDT74ALVC162334 Datasheet (214.14 KB)

Preview of IDT74ALVC162334 PDF

Datasheet Details

Part number:

IDT74ALVC162334

Manufacturer:

Renesas ↗

File Size:

214.14 KB

Description:

16-bit universal bus driver.
