IDT74ALVC162836 - 3.3V CMOS 20-BIT UNIVERSAL BUS DRIVER

Datasheet Summary

Description

IDT74ALVC162836 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range VC

IDT

📥 Download Datasheet

IDT74ALVC162836 3.3V CMOS 20-BIT UNIVERSAL BUS DRIVER by IDT - Datasheet Preview — Datasheet preview – IDT74ALVC162836

Datasheet Details

Part number	IDT74ALVC162836
Manufacturer	IDT
File Size	91.84 KB
Description	3.3V CMOS 20-BIT UNIVERSAL BUS DRIVER
Datasheet	IDT74ALVC162836 Datasheet
Additional preview pages of the IDT74ALVC162836 datasheet.

📁 Similar Datasheet

IDT74ALVC162244 - 3.3V CMOS 16-BIT BUFFER/DRIVER (Renesas)
IDT74ALVC162245 - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device Tech)
IDT74ALVC162334 - 16-bit universal bus driver (Renesas)
IDT74ALVC16244A - 16-BIT BUFFER/DRIVER (Renesas)
IDT74ALVC16245 - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device Tech)
IDT74ALVC16245 - 16-bit bus transceiver (Renesas)
IDT74ALVC164245 - 16-bit 3.3V to 5V level shifting transceiver (Renesas)
IDT74ALVC08 - 3.3V CMOS QUADRUPLE 2-INPUT POSITIVE-AND GATE (Integrated Device Tech)
IDT74ALVC244 - 3.3V CMOS OCTAL BUFFER/ DRIVER WITH 3-STATE OUTPUTS (Integrated Device Tech)
IDT74ALVCH162244 - 3.3V CMOS 16-BIT BUFFER/DRIVER (Integrated Device Technology)

Other Datasheets by IDT

IDT74ALVC162835 - 3.3V CMOS 18-BIT UNIVERSAL BUS DRIVER
IDT74ALVC162244 - 3.3V CMOS 16-BIT BUFFER/DRIVER
IDT74ALVC162334 - 3.3V CMOS 16-BIT UNIVERSAL BUS DRIVER
IDT74ALVC16244A - 3.3V CMOS 16-BIT BUFFER/DRIVER
IDT74ALVC164245 - CMOS 16-BIT 3.3V TO 5V LEVEL SHIFTING TRANSCEIVER
IDT74ALVC1G32 - 3.3V CMOS SINGLE 2-INPUT POSITIVE-OR GATE
IDT74ALVC1G86 - 3.3V CMOS Single 2 Input Exclusive-Or Gate
IDT74ALVCH16652 - CMOS 16-BIT BUS TRANSCEIVER AND REGISTER

Full PDF Text Transcription

Click to expand full text

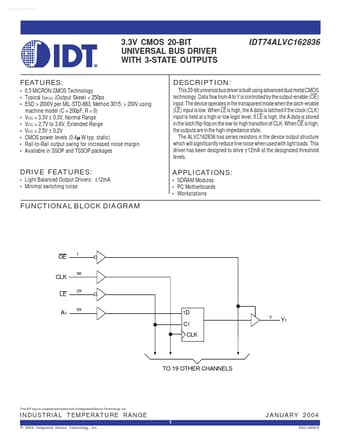

www.DataSheet4U.com IDT74ALVC162836 3.3V CMOS 20-BIT UNIVERSAL BUS DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 20-BIT UNIVERSAL BUS DRIVER WITH 3-STATE OUTPUTS FEATURES: DESCRIPTION: IDT74ALVC162836 • 0.5 MICRON CMOS Technology • Typical tSK(o) (Output Skew) < 250ps • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • VCC = 2.5V ± 0.2V • CMOS power levels (0.4µ W typ. static) • Rail-to-Rail output swing for increased noise margin • Available in SSOP and TSSOP packages This 20-bit universal bus driver is built using advanced dual metal CMOS technology. Data flow from A to Y is controlled by the output-enable (OE) input.
