IDT74ALVC162245 - 3.3V CMOS 16-BIT BUS TRANSCEIVER

Datasheet Summary

Description

This 16-bit bus transceiver is built using advanced dual metal CMOS technology.

The ALVC162245 is designed for asynchronous communication between data buses.

The control-function implementation minimizes external timing requirements.

Features

  • 0.5 MICRON CMOS Technology.
  • Typical tSK(o) (Output Skew) < 250ps.
  • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
  • VCC = 3.3V ± 0.3V, Normal Range.
  • VCC = 2.7V to 3.6V, Extended Range.
  • VCC = 2.5V ± 0.2V.
  • CMOS power levels (0.4μ W typ. static).
  • Rail-to-Rail output swing for increased noise margin.
  • Available in TSSOP package DRIVE.

📥 Download Datasheet

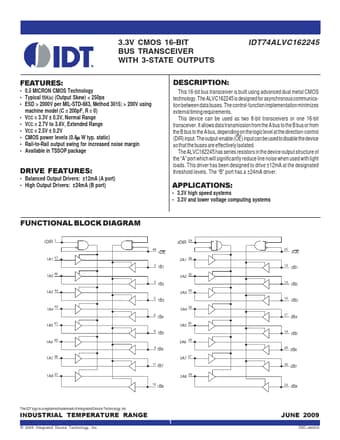

Datasheet preview – IDT74ALVC162245

Datasheet Details

Part number IDT74ALVC162245
Manufacturer Integrated Device Tech
File Size 84.43 KB
Description 3.3V CMOS 16-BIT BUS TRANSCEIVER
Datasheet download datasheet IDT74ALVC162245 Datasheet
Additional preview pages of the IDT74ALVC162245 datasheet.

📁 Similar Datasheet

Other Datasheets by Integrated Device Tech

Full PDF Text Transcription

Click to expand full text
IDT74ALVC162245 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS INDUSTRIALTEMPERATURERANGE IDT74ALVC162245 FEATURES: • 0.5 MICRON CMOS Technology • Typical tSK(o) (Output Skew) < 250ps • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • VCC = 2.5V ± 0.2V • CMOS power levels (0.4μ W typ. static) • Rail-to-Rail output swing for increased noise margin • Available in TSSOP package DRIVE FEATURES: • Balanced Output Drivers: ±12mA (A port) • High Output Drivers: ±24mA (B port) DESCRIPTION: This 16-bit bus transceiver is built using advanced dual metal CMOS technology.
