IDT74ALVC162244 - 3.3V CMOS 16-BIT BUFFER/DRIVER

IDT74ALVC162244 Description

IDT74ALVC162244 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIALTEMPERATURERANGE ID.
This 16-bit buffer/driver is built using advanced dual metal CMOS technology.

IDT74ALVC162244 Features

* 0.5 MICRON CMOS Technology
* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* VCC = 3.3V ± 0.3V, Normal Range
* VCC = 2.7V to 3.6V, Extended Range
* VCC = 2.5V ± 0.2V

📥 Download Datasheet

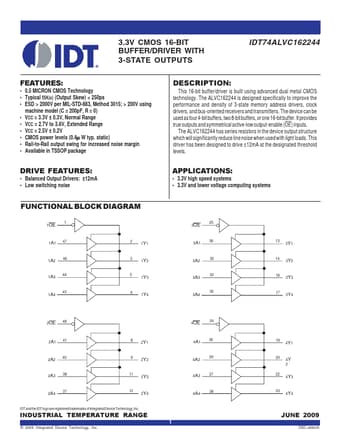

Preview of IDT74ALVC162244 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT74ALVC162244
Manufacturer
IDT
File Size
71.68 KB
Datasheet
IDT74ALVC162244-IDT.pdf
Description
3.3V CMOS 16-BIT BUFFER/DRIVER
