IDT7MP624S

1M CMOS Static RAM Plastic Module

IDT7MP624S Features

* High-density 1024K-bit CMOS static RAM module

* Customer-configured to 64K x 16, 128K x 8 or 256K x 4

* Fast access times -30ns (max.) over commercial temperature range

* Low-power consumption -Active: 4.8W (typ. in 64K x 16 organization) -Standby: 1.6mW (typ.)

IDT7MP624S General Description

The IDT7MP624 is a 1024K-bit high-speed CMOS static RAM constructed on an epoxy laminate substrate using 16 IDT7187 (64K x 1) static RAMs in plastic surface mount packages. Making four chip select lines available (one for each group of 4 RAMs) allows the user to configure the memory into a 64K x 16.

IDT7MP624S Datasheet (94.35 KB)

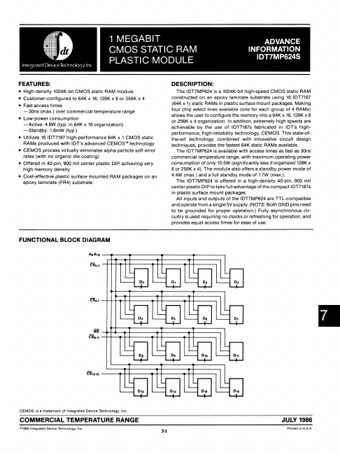

Preview of IDT7MP624S PDF

Datasheet Details

Part number:

IDT7MP624S

Manufacturer:

IDT

File Size:

94.35 KB

Description:

1m cmos static ram plastic module.
