IDT7MP4145

256K x 32 CMOS STATIC RAM MODULE

IDT7MP4145 Features

* High density 1 megabyte static RAM module (IDT7MP4145 upgradeable to 4 megabyte, IDT7MP4120)

* Low profile 64 pin ZIP (Zig-zag In-line vertical Package) or 64 pin SIMM (Single In-line Memory Module) for IDT7MP4045 and 72 pin SIMM (Single In-line Memory Module) for IDT7MP4145

IDT7MP4145 General Description

The IDT7MP4045/4145 is a 256K x 32 static RAM module constructed on an epoxy laminate (FR-4) substrate using 8 256K x 4 static RAMs in plastic SOJ packages. Availability of four chip select lines (one for each group of two RAMs) provides byte access. The IDT7MP4045 is available with access time as .

IDT7MP4145 Datasheet (96.29 KB)

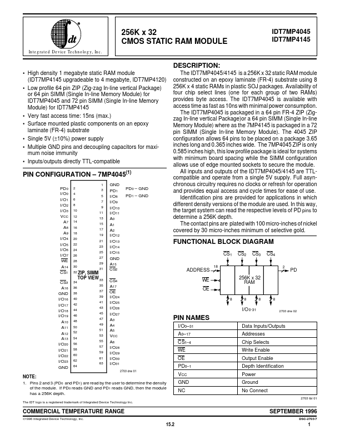

Preview of IDT7MP4145 PDF

Datasheet Details

Part number:

IDT7MP4145

Manufacturer:

Integrated Device

File Size:

96.29 KB

Description:

256k x 32 cmos static ram module.
