IDT8M864, IDT7M864, 64K CMOS STATIC RAMPAK

* Equivalent to JEDEC standard 8K x 8 monolithic RAM * 8,192 x 8 CMOS static RAM module complete with decoder and decoupling capacitor.
The IDT7M864/IDT8M864 are 64K (8,192 x 8 bit) high speed static RAMs constructed on a ceramic substrate using 41DT6116 (2,048 x 8) static RAMs in lea.

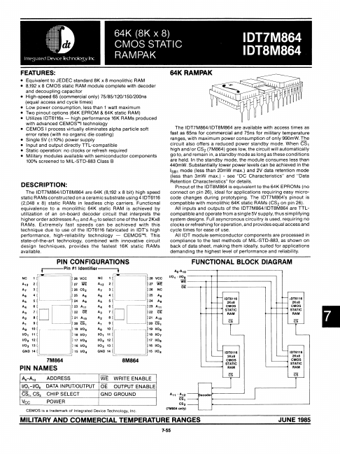

datasheet Preview Page 1 from Datasheet4u.com

IDT7M864-IDT.pdf

IDT8M864 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT8M864, IDT7M864. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT8M864, IDT7M864

Manufacturer:

IDT

File Size:

365.13 KB

Description:

64K CMOS STATIC RAMPAK

Note:

This datasheet PDF includes multiple part numbers: IDT8M864, IDT7M864.
Please refer to the document for exact specifications by model.

Applications

* requiring easy microcode changes during prototyping. The IDT7M864's pinout is compatible with monolithic 64K static RAMs (CS2 on pin 26). All inputs and outputs of the IDT7M864/IDT8MB64 are TTLcompatible and operate from a single 5V supply, thus simplifying system designs. Full asyncronous circuitry
