IDTP9120 - Triple Channel Synchronous StepDown Switcher

IDT

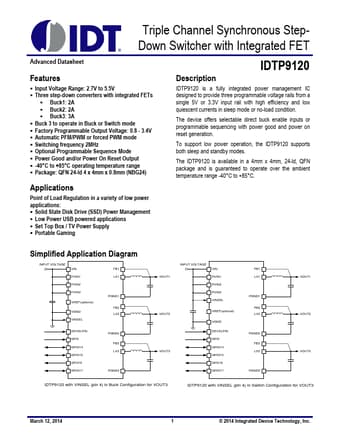

IDTP9120 Datasheet Preview — Preview of IDTP9120 PDF

Datasheet Details

Part number	IDTP9120
Manufacturer	IDT
File Size	924.89 KB
Description	Triple Channel Synchronous StepDown Switcher
Datasheet	IDTP9120-IDT.pdf

IDTP9120 Product details

Description

IDTP9120 is a fully integrated power management IC designed to provide three programmable voltage rails from a single 5V or 3.3V input rail with high efficiency and low quiescent curre

Features

Input Voltage Range: 2.7V to 5.5V.
Three step-down converters with integrated FETs.
Buck1: 2A.
Buck2: 2A.
Buck3: 3A.
Buck 3 to operate in Buck or Switch mode.
Factory Programmable Output Voltage: 0.8 - 3.4V.
Automatic PFM/PWM or forced PWM mode.
Switching frequency 2MHz.
Optional Programmable Sequence Mode.
Power Good and/or Power On Reset Output.
-40°C to +85°C operating temperature range.
Package: QFN 24-ld 4 x 4mm x 0.8mm (NBG2.
